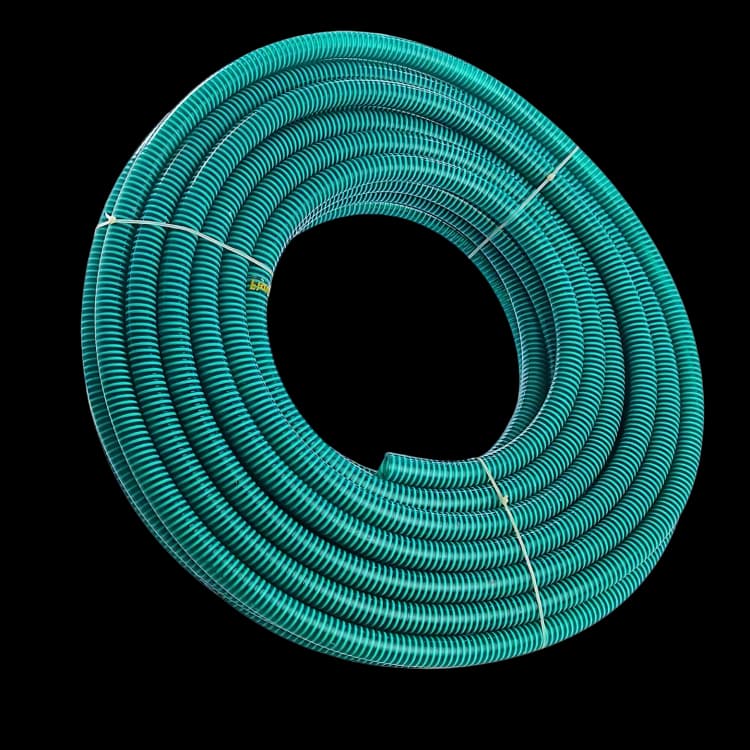

PVC Green Suction Hose

Rubber Hose

Overview

PVC Green Suction Hose is a flexible, crush-resistant suction hose used in various applications, from general water pumping to light chemical transfer. Constructed with a rigid PVC helix embedded within durable PVC walls, this hose exhibits excellent structural integrity while remaining relatively lightweight. Its signature green color helps differentiate it from other hoses in a fleet or worksite, aiding in quick identification and routing.

Key Uses & Applications

Agricultural Water Pumping & Irrigation

  • Ideal for suction and discharge of water on farms for crop irrigation or livestock watering
  • Handles typical agricultural irrigation chemicals with proper compatibility checks

Construction & Dewatering

  • Widely used for pumping water out of trenches, excavation sites, and drainage ditches
  • Rigid PVC helix prevents hose collapse under vacuum pressures commonly encountered in construction dewatering tasks

Industrial & Light Chemical Transfer

  • Transfers mild chemicals, wastewater, and other non-abrasive fluids in industrial operations
  • Smooth interior aids in efficient flow and quick cleaning

Municipal & Marine Applications

  • Suction for fire hydrant connections (non-fire-rated) and emergency water services
  • Suitable for bilge pumping or general marine use with moderate suction requirements

Product Highlights

Rigid PVC Helix

  • Reinforced spiral helix embedded throughout the hose wall provides robust crush resistance
  • Maintains structural shape under partial vacuum, preventing collapse

Flexible & Lightweight

  • Easier to maneuver and install compared to heavier rubber hoses or rigid piping systems
  • Can bend around obstacles or corners, reducing the need for multiple fittings

Green Color Coding

  • Easily identifiable on worksites or among other hoses, which simplifies management and deployment

Smooth Inner Surface

  • Promotes optimum flow rates and reduces clogging risks
  • Streamlines cleaning and maintenance, especially for water-based fluids

Temperature Range

  • Typically from -5°C to +60°C (23°F to 140°F), depending on fluid characteristics and ambient conditions

Technical Details

Material
PVC construction with rigid PVC helix reinforcement
Diameter Range
2" (50 mm), 2.5" (63 mm), 3" (75 mm), 4" (100 mm), 6" (150 mm)
Wall Thickness
Varies with hose diameter; designed for moderate vacuum & pressure
Working Pressure
Up to ~4–6 bar (58–87 psi) depending on hose size & temp
Vacuum Rating
Up to ~610 mmHg (24 inHg) at ambient temperature
Burst Pressure
Typically 3× working pressure
Length Rolls
Commonly supplied in 30 m or 50 m coils, custom lengths available
Color
Green outer layer with embedded white or green helix

Technical Specifications

SIZE (INCH)SIZE (MM)ID (MM)OD (MM)Bending Radius (mm)WP (bar)BP (bar)Length (M)
25050.857.512241630
37576.2852723.51530
4100101.2112.22903.5150.5
6150152.4169.43752.5930

Sizing & Flow Rates

  • •2" (50 mm): Suitable for small-scale pumping, irrigation lines, and general dewatering tasks.
  • •2.5" (63 mm) & 3" (75 mm): Popular for moderate jobsite dewatering or medium-flow irrigation.
  • •4" (100 mm): Often used in larger construction pumping setups, municipal tasks, or high-volume water transfers.
  • •6" (150 mm): Heavy-flow jobs for large-scale irrigation, municipal pumping, and industrial fluid transfer.
